CAMPER VAN FLOOR PLANS & MEASUREMENTS

El Kapitan offers two camper van models in three different floor plans/editions that are highly-detailed and authentically designed. Chose between the Sprinter 144 Story Maker or the Sprinter 170 Dream Weaver and we guarantee you will find the one that best fits your needs.

STORY MAKER

first edition

Single side facing sofa set up with large flip table.

Single side facing sofa that pulls out to a bed. The single sofa allows more space for transporting equipment in the cargo area.
Large flip up table directly in front of the sofa. Perfect for using as a work station or dining area. Optimum size for two.

second edition

Dinette sofa set up with removable peg leg adjustable height table in middle.

Additional side facing sofa on passenger side. Both sofa’s fold out to meet in the middle to create a bed.
Removable peg leg table with adjustable height positions. Large enough for all four passengers to gather around.

third edition

No sofa(s) or table(s) in the cargo area

No flip up table on the front of the electrical box. Extended cargo area to hold multiple recreational equipment.
Sofa is replaced with a water tank box. The rigid lights are mounted on front face with webasto heater stored inside.

first, second, or third edition modified

Replacing the two captain chairs with a jackknife sofa next to the galley. Floor plan includes jackknife sofa and removable peg leg table.  Modified is an option for all three floor plans.

Jackknife sofa with open cubby below.
Removable peg leg table mounted in front of sofa to sit and enjoy meals and the view out your sliding door.

interior & exterior dimensions

interior cargo space

  • 128.8″ Length
  • 70.4″ Width
  • 53.1″ Width between wheel wells
  • 79.1″ Standing height

first edition

Single side facing sofa set up with large flip table.

A 72″ side facing fold out sofa bed. Set at an ideal length for sleeping for any individual.
Large flip up table on front face of electrical box. Same configuration as the Story Maker. Perfect as a work station and dining area.

second edition

Dinette sofa set up with removable peg leg adjustable height table in middle.

A removable peg leg table that is adjustable in height located in between the two sofa’s. Perfect for social gatherings and enjoying meals. Accommodates four to six individuals.
An additional 72″ side facing sofa fold out bed. Both beds meet in the middle to create one large queen side bed for two guests.

third edition

No sofa(s) or table(s) in the cargo area

No sofa(s) in the rear cargo area. Perfect for transporting larger equipment and luggage.
No flip up table or removable tables. Open free space for you convenience.

first, second, or third edition modified

Replacing the two captain chairs with a jackknife sofa next to the galley. Floor plan includes jackknife sofa and removable peg leg table.  Modified is an option for all three floor plans.

Jackknife sofa beside the shower. Folds down to make bed for a child or pet.
Removable peg leg table with mount secure to the floor. Table storage available in the overhead shelf above driver and passenger.

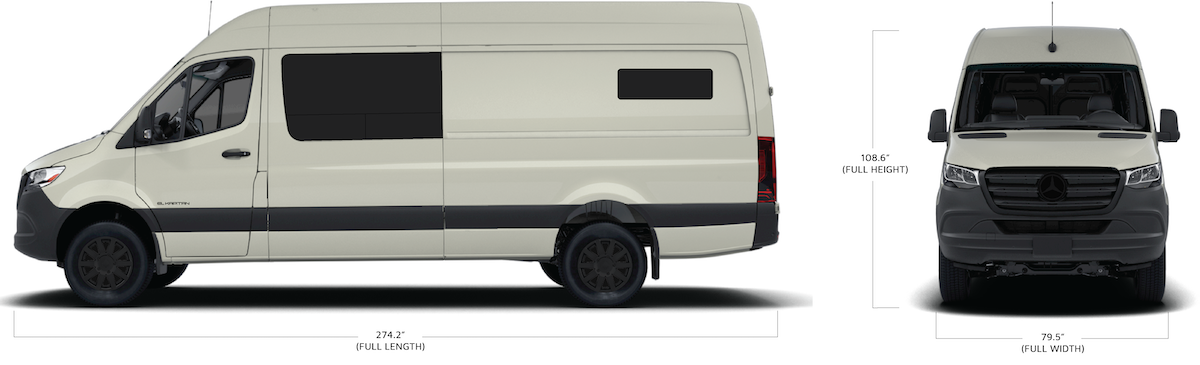

interior & exterior dimensions

interior cargo space

  • 169.6″ Length
  • 70.4″ Width
  • 53.1″ Width between wheel wells
  • 79.1″ Standing height
