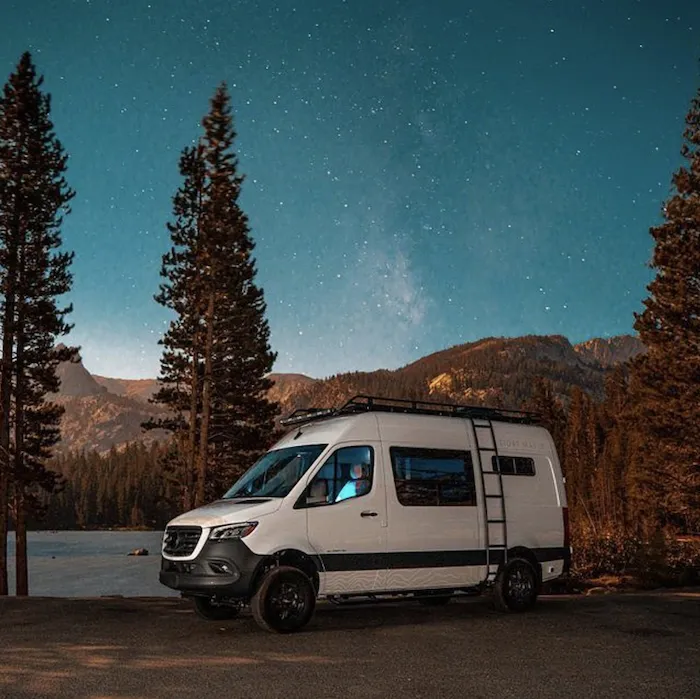

El Kapitan Vans introduces its class B RV Story Maker. The Story Maker camper is built on a 144 high roof Sprinter chassis. This class B RV has seating for four and comes equipped with three sleeping arrangements. With a spacious walkway and reclining lounge seats, the Story Maker will comfortably transport a family of four.
THEY’RE NOT JUST VANS, THEY’RE STORY MAKERS.
FEATURES
View full list of features HERE.

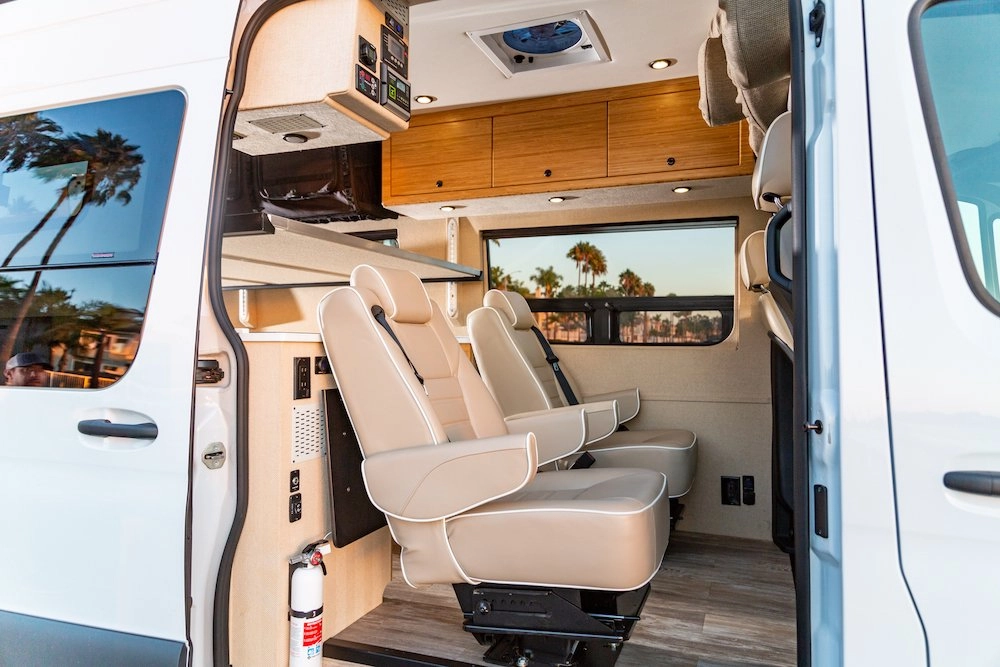

360 SWIVEL SEATS
The Captain Seats are on a 360 swivel base designed to face forward while driving. The lower side levers allow the seat to slide forward and back. Other seat functions include adjustable armrests, headrests, and recline.
SOLAR PANELS
Sprinter van solar panels perform off grid battery charging. As a result, your van will have the ability to thrive off grid.
POWERED AWNING
The power awning is hands free and includes exterior halo lights, a 12v push button, and optional legs to mount to side of van. A perfect Sprinter van accessory and ideal for outdoor gatherings.
ELEVATOR BED
The MOAB bed uses a wall mounting system for support. It contains three removable, height adjustable, and collapsible panels. Three individual bed cushions are included.
FLOOR PLAN
144 High Roof Sprinter chassis, 4×4 or standard
FEATURE VIDEO
CAMPER CONVERSION SPECS

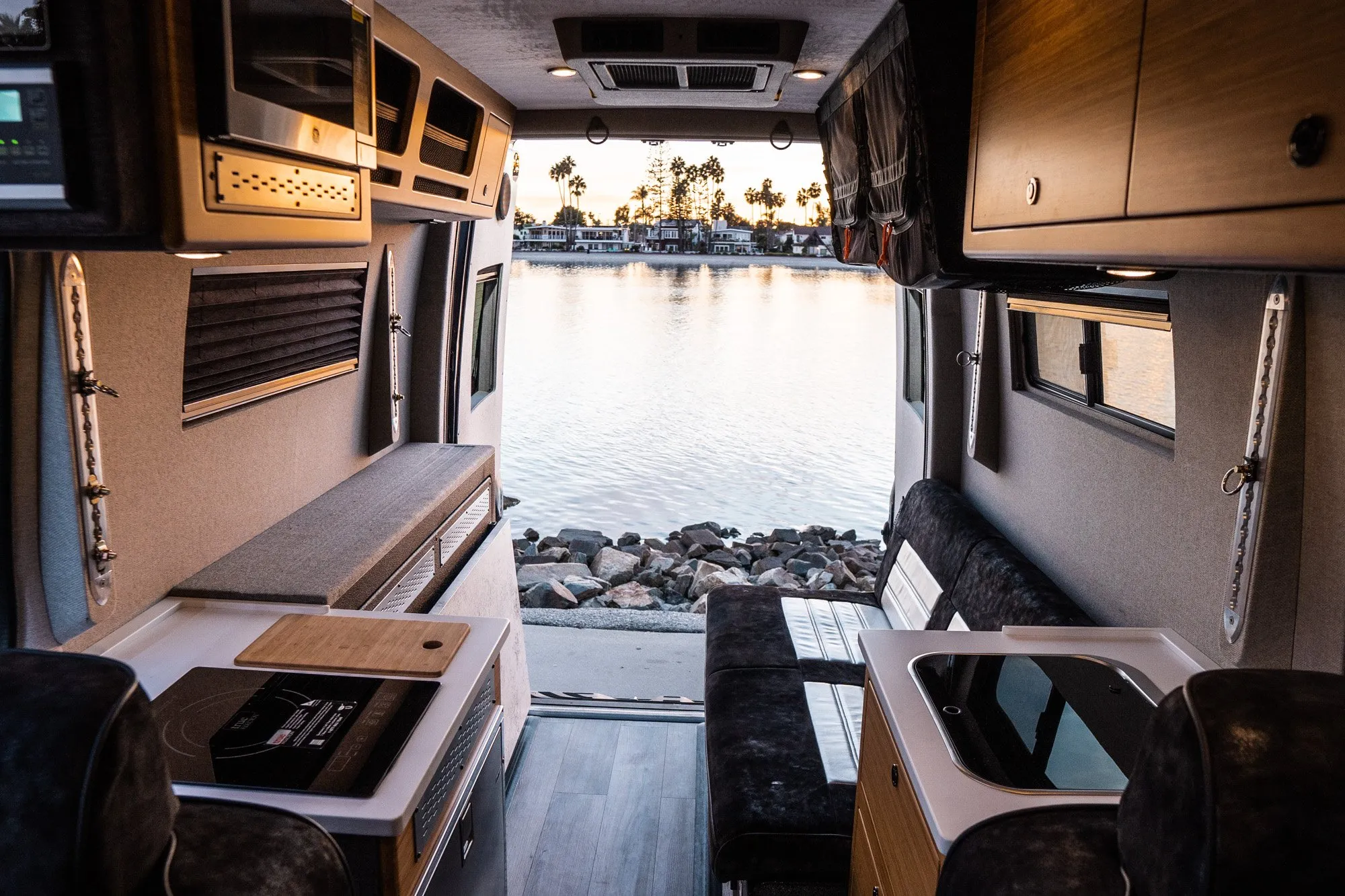

CAMPER INTERIOR PACKAGE
Mahogany luan walls, ceiling and door panels
Walls/ceiling/door panels/factory headliner
Finished in closed cell acoustic foam & upholstered
Stitched in interweave fabric or vinyl
6 push button LED lights
5/8″ Marine Grade plywood floor
Black powder coated floor trim
Nest carbon monoxide + smoke detector and fire extinguisher.
WALL STYLE
- Boxed windows for pleated night shades
FLOORING
- Vinyl wood or luxury woven vinyl
- Powder coated black floor trim
SHADES
- (6) Pleated night shade
INSULATION & SOUND DEADNING
- Thermozite Insulation
- Sound deadning throughout
POWER
- 315 AMP Hour Lithium Battery
- Smart Battery Monitor Display (Bluetooth built in)
- 3000 watt inverter
- Secondary alternator
- Alternator bracket
- (2) 90 watt solar panel
- Solar digital controller
- Shore power (with cord and adapter)
- (4) 110v outlet
- 12v Jack
- (4) USB port lightening
- Bluesea switch panel
SOUND SYSTEM
- (2) Focal component speaker (pair)
- JL subwoofer
- Focal amplifier
LIGHTING
- LED strip lighting in cabinets/cubbies/shelves
- LED strip lighting toe kick
- LED strip lighting in storage box
- Push button lights under cabinets
- (2) Rigid lights on sofa base
- Master light toggle switch
HEATING
- Hot water exchange system (heats water using factory coolant system)
- Webasto air heating system high altitude (inside vehicle)
- Insulated water lines
COOLING
- Fantastic fan roof vent (smoke lid)
- 12v AC system (runs off lithium battery)
WATER
- Fresh water tank
- Grey water tank with bracketry (mounted under vehicle)
- Sureflow pump
- City water fill
- Water hose for fill
BATHROOM
- Exterior shower with quick connect hose & shower head
- Porta-Potti (Cassette)
KITCHEN
- Sink with lid & folding faucet
- Induction stove top single
- Microwave
- Isotherm 3.0 stainless steel drawer refrigerator
SLEEPING
- Moab elevator bed (bamboo, bare aluminum)
- Bed cushions (memory foam, 3 individual cushions)
SEATING
- (2) Dynasty Mid chair (must select swivel base)
- (2) Swivel base
- Side-facing sofa (not dot approved, no belts)
- *Dinette sofa’s (SECOND EDITION)
- Driver seat swivel base
- Passenger seat swivel base
- Driver &passenger seats reupholstered

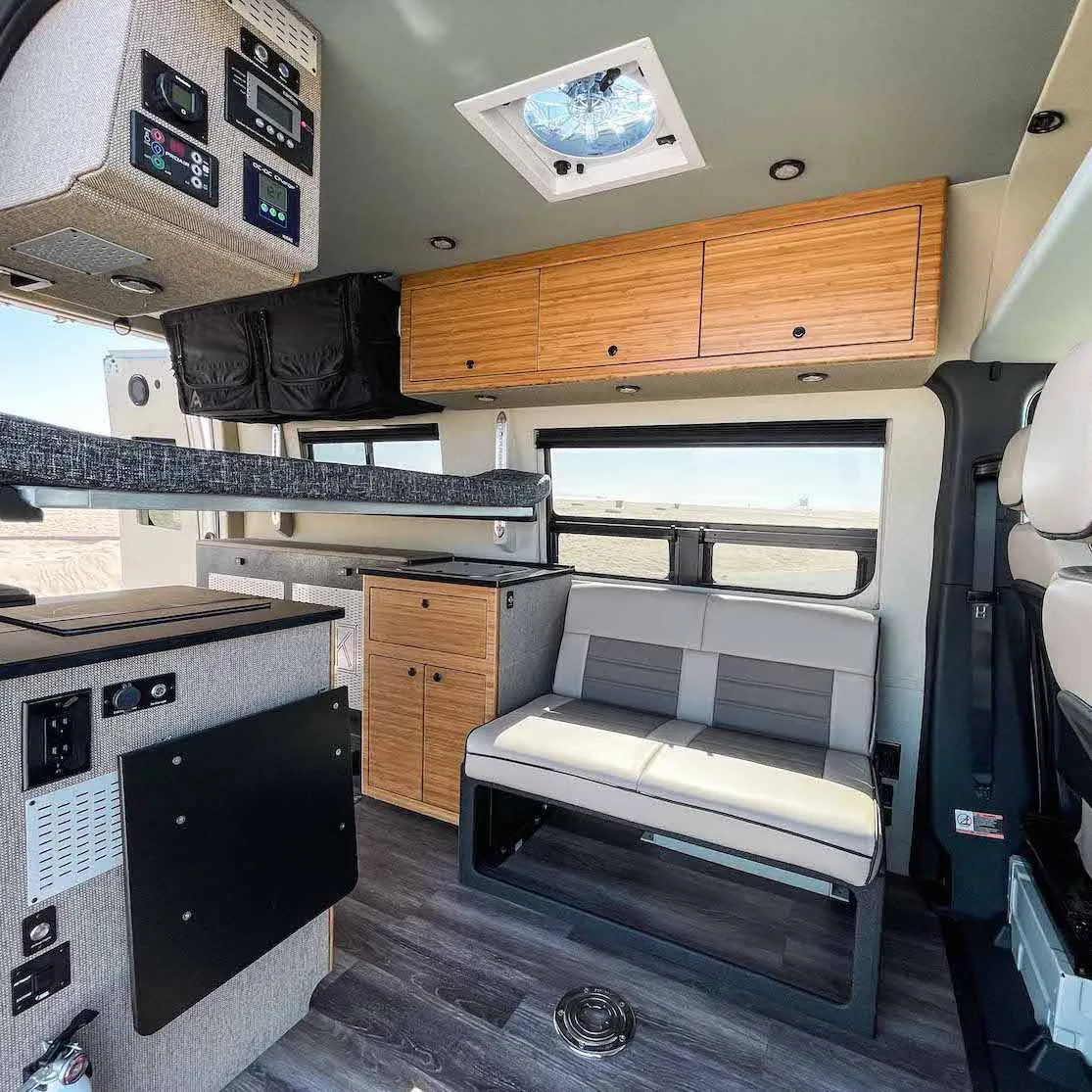

CABINETRY & STORAGE
- Refrigerator cabinet
- Sink & storage cabinet
- Corian counter top
- Overhead cabinets with pumps & latches (3 door)
- Microwave cabinet
- Upper rear storage cubby with net
- Shelf over driver & passenger
- Electrical storage box, bullet liner
- Water tank storage box, bullet liner
TABLES
- Flip up table on sink galley (starboard top)
- Flip up table on refrigerator galley (starboard top)
- Flip up table on electrical storage box (formica top)
- *Removable adjustable leg table (SECOND EDITION)
WINDOWS
- (2) 10×33 half slider or awning (subject to availability)
- Driver front panel dual vent
- Passenger sliding door single vent
- (2) Rear door window solid panels
EXTERIOR
- Black emblems
- Black sliding door track
- Roof Rails
- Touring style roof rack
- Ladder

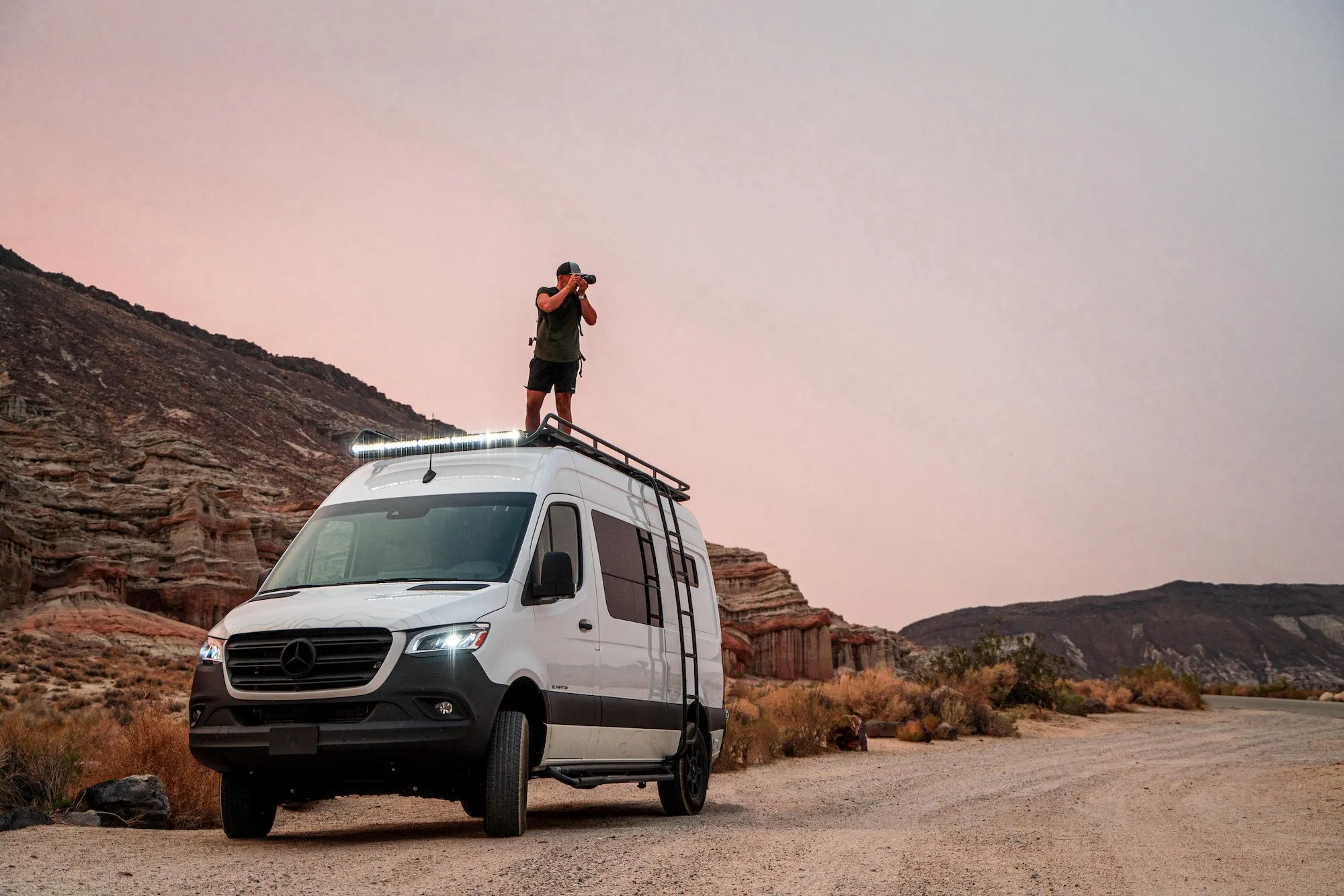

- 50″ light bar (mounts to roof rack or top of roof above windshield)
- Squadron lights (pair)

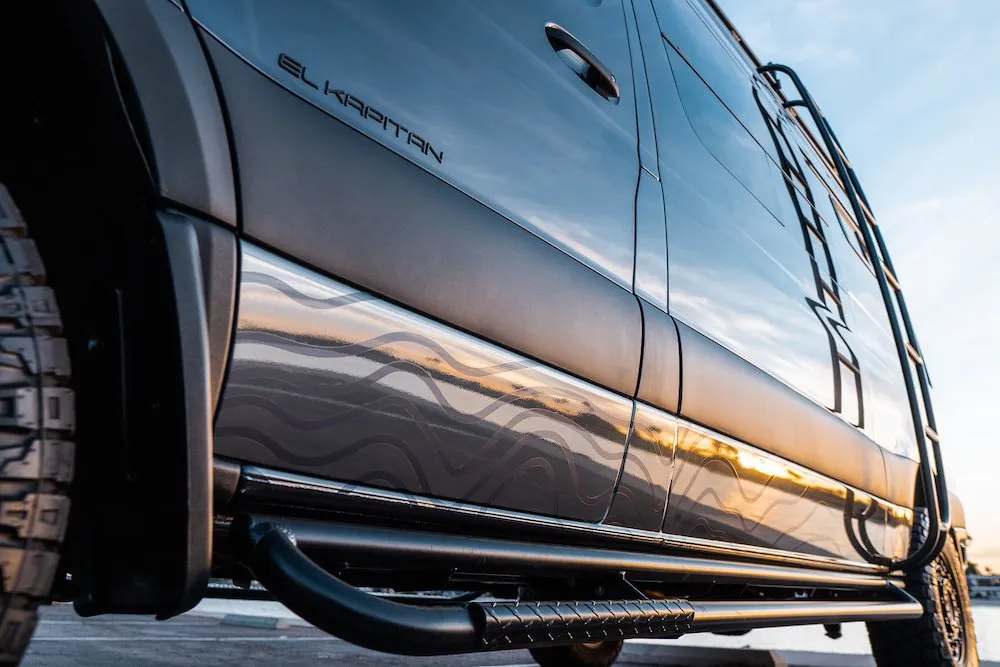

- Nerf bar with tread plate
- Power Awning LED lights (mounts to roof rack or roof rails)
- Ultra wheels (fit existing factory tires)
- Vinyl Graphic Wrap
GEAR MOUNTING
- (3) D-ring (hammock position)
- (4) Aviation track for floor counter sunk (per row)
- (4) Aviation track wall (per row)
- (6) Aviation ring

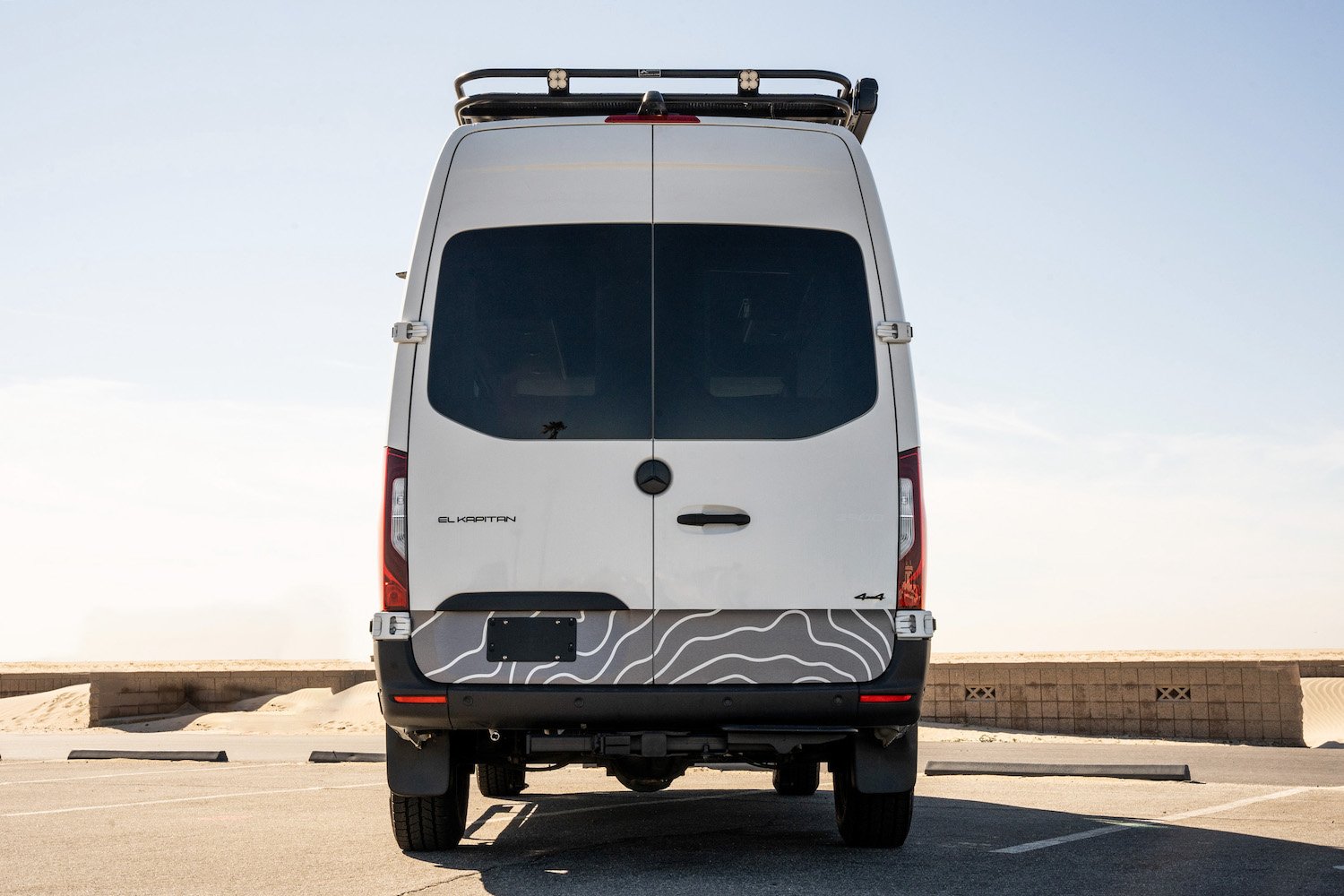

EXTERIOR GRAPHICS
Vinyl graphics are included in our standard package to accent your Story Maker.
PACKAGE UPGRADES
FINAL FANTASY EDITION
All inclusive interior package that includes Agile off road rip kit, Black Rhino wheels, and more.
