SEATING & DINING

Our Sprinter 144 Story Maker and Sprinter 170 Dream Weaver has multiple seating arrangements from the two captain seats with swivel and recline functions, a side facing sofa, or dinette’s. Dining options include one large table, two mini flip-up tables, or a removable peg leg table.

SEATING

CAPTAIN SEATS

The captain seats are on a 360 swivel base designed to face forward while driving. The lower side levers allow the seat to slide forward and back. Other seat functions include adjustable armrests, headrests, and recline.

seating

SEATING

UPHOLSTERY

All of our seats are upholstered to perfection with the finest leathers and materials.

CAPTAIN SEAT DIAGRAM

SEAT MEASUREMENTS

SEAT WIDTH (WITH ARMRESTS)

24 INCHES

SEAT HEIGHT

44-1/2 INCHES

SEAT WIDTH (WITHOUT ARMRESTS)

21-1/2 INCHES

SEAT DEPTH

29 INCHES

TRAVEL DISTANCE (FORWARDS)

2-1/2 INCHES

TRAVEL DISTANCE (BACKWARDS)

2-1/2 INCHES

TOTAL TRAVEL DISTANCE

5 INCHES

ARMRESTS LENGTH

18 INCHES

ARMRESTS WIDTH

2 INCHES

RECLINE DISTANCE (MAXIMUM)

40 INCHES

SEATING

SIDE FACING SOFA

In addition to seats, the side facing sofa also functions as a bed or a personal lounge area.

SEATING

PRIME LOCATION

Located in the rear cargo area, the side facing sofa allows you to enjoy spectacular views from the rear doors.

SIDE FACING SOFA DIAGRAM

STORY MAKER

DREAM WEAVER

SOFA MEASUREMENTS

SOFA LENGTH (STORY MAKER)

53 INCHES

SOFA BOX LENGTH (STORY MAKER)

54 INCHES

SOFA LENGTH (DREAM WEAVER)

71 INCHES

SOFA BOX LENGTH (DREAM WEAVER)

72 INCHES

SOFA HEIGHT

32-1/2 INCHES

BOX DEPTH (TO WALL)

31 INCHES

SOFA BOX HEIGHT (WITH CUSHION)

19 INCHES

SOFA BOX HEIGHT

15 INCHES

BACK CUSHION LENGTH

16-1/2 INCHES

BASE CUSHION LENGTH

21-1/2 INCHES

TOTAL EXTENDED DEPTH

38-1/2 INCHES

SEATING

DINETTE SOFA’S

Available in our Second Edition floor plan for both Story Maker and Dream Weaver. Ideal family style set up to enjoy meals, work, or a spontaneous game night.

SEATING

PRIME SLEEPING ARRANGEMENT

The two sofa’s fold out and meet in the middle to form a large bed.

DINETTE SOFA DIAGRAM

STORY MAKER

DREAM WEAVER

STORY MAKER & DREAM WEAVER

Dinette sofa set up with the Honey Bunny Bed System with the different measurements based on bed adjustability.

DINETTE SOFA MEASUREMENTS

SOFA LENGTHS (STORY MAKER)

51-3/4 INCHES

SOFA LENGTHS (DREAM WEAVER)

72 INCHES

SOFA HEIGHT

32-1/2 INCHES

BOX DEPTH (TO WALL)

25-1/2 INCHES

SOFA BOX HEIGHT (WITH CUSHION)

18-1/2 INCHES

SOFA BOX HEIGHT

13-1/2 INCHES

TOTAL EXTENDED DEPTH

34 INCHES

SEATING

HONEYMOONER SOFA

Available in both models, the mini side facing sofa replaces the two captain seats and is nestled next to the interior shower.

SEATING

OPEN LAYOUT

Perfect seating arrangement for two making it the perfect setting to enjoy a meal while admiring the view out the sliding door.

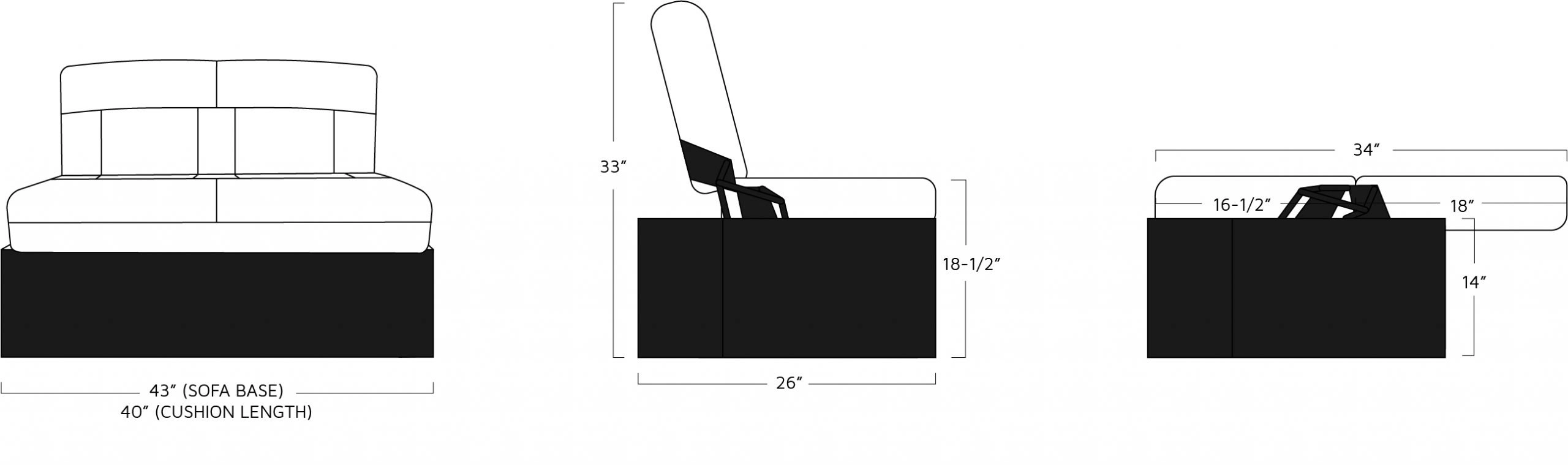

HONEYMOONER SOFA DIAGRAM

HONEYMOONER SOFA MEASUREMENTS

LENGTH (SOFA BASE)

43 INCHES

LENGTH (CUSHION)

40 INCHES

BASE DEPTH

26 INCHES

BASE HEIGHT

14 INCHES

BASE HEIGHT (WITH CUSHION)

18-1/2 INCHES

TOTAL EXTENDED DEPTH

34 INCHES

DINING

FLIP UP TABLE

Relax on your side facing sofa and utilize the large flip table as a work station, dining table, or recreational area.

DINING

GALLEY TABLES

Our captain seats allow you to swivel around and utilize the flip up tables on galley’s. They can be used as a work station, dining or recreational area.

DINING

REMOVABLE PEG LEG TABLE

Available in both models, the removable peg leg table is a part of the second edition and honeymooner floor plans. With an adjustable leg and bamboo top, it opens up the living area allowing you to sit and enjoy the view from the side facing sofa.

TABLE MEASUREMENTS

FLIP-UP TABLE LENGTH

48 INCHES

FLIP-UP TABLE WIDTH

24-1/2 INCHES

FLIP-UP TABLE DEPTH

1 INCH

MINI FLIP-UP TABLES LENGTH

17-1/4 INCHES

MINI FLIP-UP TABLES WIDTH

17-1/4 INCHES

MINI FLIP-UP TABLES DEPTH

1/2 INCH

REMOVABLE TABLE TOP WIDTH

15 INCHES

REMOVABLE TABLE TOP LENGTH

28 & 32 INCHES
